Belts Pulleys and Gears

1800 Timing Belt Kit - 1974-78 Save over 10%

Timing belt kit FIAT 124 Spider - 1974-1978 (1756cc)FIAT 124 Sport Coupe - 1974-1975 (1756cc)   Don't risk damage to your engine from a failed timing belt.  Do it right by using Auto Ricambi's exclusive 1800cc timing belt kit.    This...

2000 Timing Belt Kit - 1979-85 Save over 10%

Timing belt kit FIAT 124 Spider 2000 and Pininfarina - 1979-1985 (1995cc)   Don't risk damage to your engine from a failed timing belt.  Do it right by using Auto Ricambi's exclusive 2000cc timing belt kit.  This comprehensive kit includes...

Timing Belt - 1966-71

Timing beltFIAT 124 Spider - 1966-1971 (1438cc)FIAT 124 Sport Coupe - 1967-1971 (1438cc) Don't forget to also replace the tensioner BG5-445    Installation information Tech Tip - Always clock your auxiliary shaft pulley at one o'clock and...

Timing Belt - 1971-78

Premium Dayco timing beltFIAT 124 Spider - 1971-1978 (1592, 1608 and 1756cc)FIAT 124 Sport Coupe - 1971-1975 (1592, 1608 and 1756cc)   Premium Dayco timing belt - Don't trust your motor to "no name" belts sold elsewhere A good timing belt is very...

High Performance Timing Belt - 1971-78

High performance timing belt FIAT 124 Spider - 1971-1978 (1592, 1608 and 1756cc)FIAT 124 Sport Coupe - 1971-1975 (1592, 1608 and 1756cc)   This performance 1 inch (25.4mm) wide timing belt will install the same as a standard belt and provides extra...

Timing Belt - 1979-85

Premium Dayco timing beltFIAT Spider 2000 and Pininfarina - 1979-1985 (1995cc)   Premium Dayco or Gates timing belt - Don't trust your motor to "no name" belts sold elsewhere A good timing belt is very important to the life of an engine. Don't...

High Performance Timing Belt - 1979-85

High performance timing belt FIAT 124 Spider 2000 and Pininfarina - 1979-1985 (1995cc)   This performance 1 inch (25.4mm) wide timing belt will install the same as a standard belt and provides extra strength and security for higher rpm motors. A...

Alternator Belt - 1977-85

Premium Dayco alternator belt FIAT 124 Spider, Spider 2000, Pininfarina - mid 1977-1985   Alternator on the driver's side   This belt goes around the alternator, water pump and crank pulleys   Dayco® was first to develop a v-belt with...

Alternator Belt - 1966-77

Premium Dayco alternator belt FIAT 124 Spider, Sport Coupe - 1966 to mid 1977   Alternator on the passenger side   This belt goes around the alternator, water pump and crank pulleys Dayco® was first to develop a v-belt with the raw edge...

Air Pump Drive Belt - 1974-77

Premium air pump cogged drive beltFIAT 124 Spider and Sport Coupe - 1974-1977 For vehicles with cam driven air (smog) pumps

Timing Belt Tensioner Bearing - 1966-71

Timing belt tensioner bearingFIAT 124 Spider - 1966-1971 (1438cc)FIAT 124 Sport Coupe - 1966-1971 (1438cc) The tensioner bearing should be replaced at the same time as the timing belt Auto Ricambi tensioner bearings are imported directly from Italy, be...

Timing Belt Tensioner Bearing - 1971-85

Timing belt tensioner bearingFIAT 124 Spider, Spider 2000 and Pininfarina - 1971-1985  (1592, 1608, 1756 and 1995cc)FIAT 124 Sport Coupe - 1971-1975  (1592, 1608 and 1756) The tensioner bearing should be replaced at the same time as the timing...

High Performance Timing Belt Tensioner Bearing - 1971-85

High Performance timing belt tensioner bearingFIAT 124 Spider, Spider 2000 and Pininfarina - 1971-1985 (1592, 1608, 1756 and 1995cc)FIAT 124 Sport Coupe - 1971-1975 (1592, 1608 and 1756cc) This high-quality SKF bearing is rated to 165HP+

Timing Belt Tensioner Pivot Bolt Kit

Timing belt tensioner pivot bolt kit FIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina - 1966-1985   This kit includes the following parts: Two large washers that retain the bearing The pivot bolt (this special bolt often breaks while...

Timing Belt Tensioner Spring Bolt

  Timing belt tensioner spring boltFIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina 1966-1985 Located in the middle of the timing belt tensioner spring

Crankshaft Timing Belt Gear - 14mm flange

Crankshaft timing belt gear with a 14mm flangeFIAT 124 Spider - 1966-1977, up to engine number 0430996FIAT 124 Sport Coupe - 1967-1975 Replace at any sign of wear Steel gear, as original

Crankshaft Timing Belt Gear - 3mm flange

Crankshaft timing belt gear with a 3mm flange FIAT 124 Spider, Spider 2000 and Pininfarina - 1977 (from engine # 0430996) to 1985 FIAT X1/9 - 1974-1978   Replace if you see any signs of wear   Steel gear, as original

Cam Gear (Pulley) - Exhaust or Auxiliary

      Exhaust cam gear - Can be also used for the auxiliary shaftFIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina 1966-1985 This pulley has the flange on rear to prevent belt travel

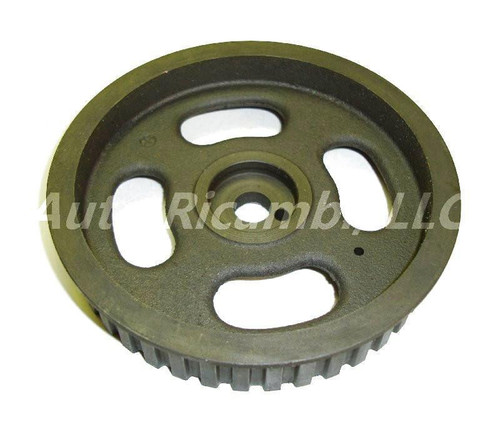

OE Cam Gear (Pulley) - Intake

OE Intake cam timing gearFIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina 1966-1985 This pulley has the flange on rear to prevent belt travel Original FIAT solid pulley - New Old Stock Made in Italy

Cam Gear (Pulley) - Intake - FI - No flange

No flange intake cam gearFIAT 124 Spider 2000 and Pininfarina 1980-1985 with Fuel injection This item is needed for the 25mm wide performance timing belts BT5-439-Z

Timing Degree Wheel

  Timing degree wheel FIAT 124 Spider and Sport Coupe, Spider 2000 and Pininfarina - 1966-1985   This is an all steel degree wheel, 10" (25cm) diameter with 3 adapters to fit various size crankshafts Mandatory when installing adjustable...

Performance Adjustable Cam Gear Set

High performance adjustable aluminum cam gear (pulley) pair FIAT 124 Spider, Spider 2000 and Pininfarina - 1966-1985FIAT 124 Sport Coupe - 1967-1975   Allows one to dial in cam timing perfectly Available in black or red, choose your color when...

OEM Crank Pulley - 1971 to early 1977

OEM original crankshaft pulleyFIAT 124 Spider - 1971 to early 1977 (1608cc and early 1756cc engines) FIAT 124 Sport Coupe - 1971-1975 (1608cc and early 1756cc engines)   Center ID is 29mm Engines with alternator on the exhaust side Single groove...

Aluminum Crank Pulley - 1971 to early 1977

Aluminum crankshaft pulley FIAT 124 Spider - 1971 to early 1977 (1608cc and early 1756cc engines) FIAT 124 Sport Coupe - 1971-1975 (1608cc and early 1756cc engines)   Center ID is 29mm Engines with alternator on the exhaust side Lighter than...

Aluminum Crank Pulley - late 1978 to 1985

Race proven Allison performance aluminum crankshaft pulley FIAT 124 Spider, Spider 2000 and Pininfarina - late 1977 to 1985 (late 1756cc and 1995cc)   Almost 4 pounds lighter than the stock cast iron version Looks great installed! For cars with the...

Water Pump Pulley - 1970-72

Water pump pulley FIAT 124 Spider - 1970-1972 (1438 and 1608cc)FIAT 124 Sport Coupe - 1970-1972 (1438 and 1608cc)   Not for early 1438cc engines with water pump mounted electro-magnetic fan   If out of stock please use the aluminum version...

Aluminum Water Pump Pulley - 1970-72

Aluminum water pump pulley FIAT 124 Spider - 1970-1972 (1438 and 1608cc)FIAT 124 Sport Coupe - 1970-1972 (1438 and 1608cc)This beautiful titanium color anodized pulley is a great replacement for a broken part, or just use to dress up the engine...

Aluminum Water Pump Pulley - 1973-77

Aluminum water pump pulley FIAT 124 Spider - 1973 to early 1977FIAT 124 Sport Coupe - 1973-1975   This pulley fits 1592cc and 1756cc engines with alternator on the exhaust side   This beautiful titanium color anodized pulley is a great...

Aluminum Water Pump Pulley - 1977-85

Aluminum water pump pulley FIAT 124 Spider, Spider 2000 and Pininfarina - mid 1977 to 1985   This pulley fits late 1756cc engines with alternator on left (driver's) side and all 1995cc engines This beautiful titanium color anodized pulley is a...

Water Pump Pulley Bolt - 1970-85

  Water pump pulley boltFIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina - 1970-1985 Three washers required per pulley For water pump lock washer see EN8-411

Long Water Pump Pulley Bolt - 1970-85

Long water pump pulley bolt for aluminum pulleys FIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina - 1970-1985   For our aluminum water pump pulleys only   Three bolts needed per pulley - to add lock washers see EN8-411

8mm Washer - Water Pump Pulley

8mm lock washer for the water pump pulleyFIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina - 1970-1985 This is a 8mm washer, will work for any 8mm nut or bolt Three washers required per water pump pulley For water pump bolt see EN8-410

Performance Aluminum Flywheel - 1971-78

Performance lightweight aluminum flywheel FIAT 124 Spider - 1971 to early 1978 (1608, 1592 and 1756cc)FIAT 124 Sport Coupe - 1971 -1975 (1608, 1592 and 1756cc)   This flywheel allows the engine to rev much faster due to its low weight Weighs...

Performance Aluminum Flywheel - 1978-85

  Performance lightweight aluminum flywheel FIAT 124 Spider, Spider 2000 and Pininfarina - late 1978-1985 (1756 and 1995cc)    This flywheel allows the engine to rev much faster due to its low weight Weighs only 8.5 lbs (3.9kg)...

Lightweight Steel Billet Performance Flywheel - 10mm

Ultra high performance new steel billet lightweight flywheel by HelixFIAT 124 Spider and Spider Coupe - 1971-1978 (to engine number 0430996) 12.3lbs overall weight 10mm diameter bolt holes Approved for use in Auto Ricambi performance engines

Lightweight Steel Billet Performance Flywheel - 12mm

Ultra high performance new steel billet lightweight flywheel by HelixFIAT 124 Spider, Spider 2000 and Pininfarina - 1978-1985 (after engine number 0430996) 12.3lbs overall weight 12mm diameter bolt holes Approved for use in Auto Ricambi...

Ring Gear for Flywheel - 1971-85

Flywheel ring gear FIAT 124 Spider, Sport Coupe, Spider 2000 and Pininfarina - 1971-1985 (1608, 1756, 1995cc)   This new ring-gear has 134 teeth

Ring Gear for Flywheel - 1966-70

Flywheel ring gear FIAT 124 Spider, Sport Coupe - 1966-1970 (1438cc)   This new ring-gear has 129 teeth

Flywheel Dowel Pin

Flywheel dowel pin - manual transmissionFIAT 124 Spider, Spider 2000 and Pininfarina - 1966-1985FIAT 124 Sport Coupe - 1967-1975FIAT and Bertone X1/9 - 1974-1988 Positions pressure plate on flywheel 3 required per fly wheel Sold individually
